0.001° Ultra-High Accuracy 4-20mA Inclinometer

Description

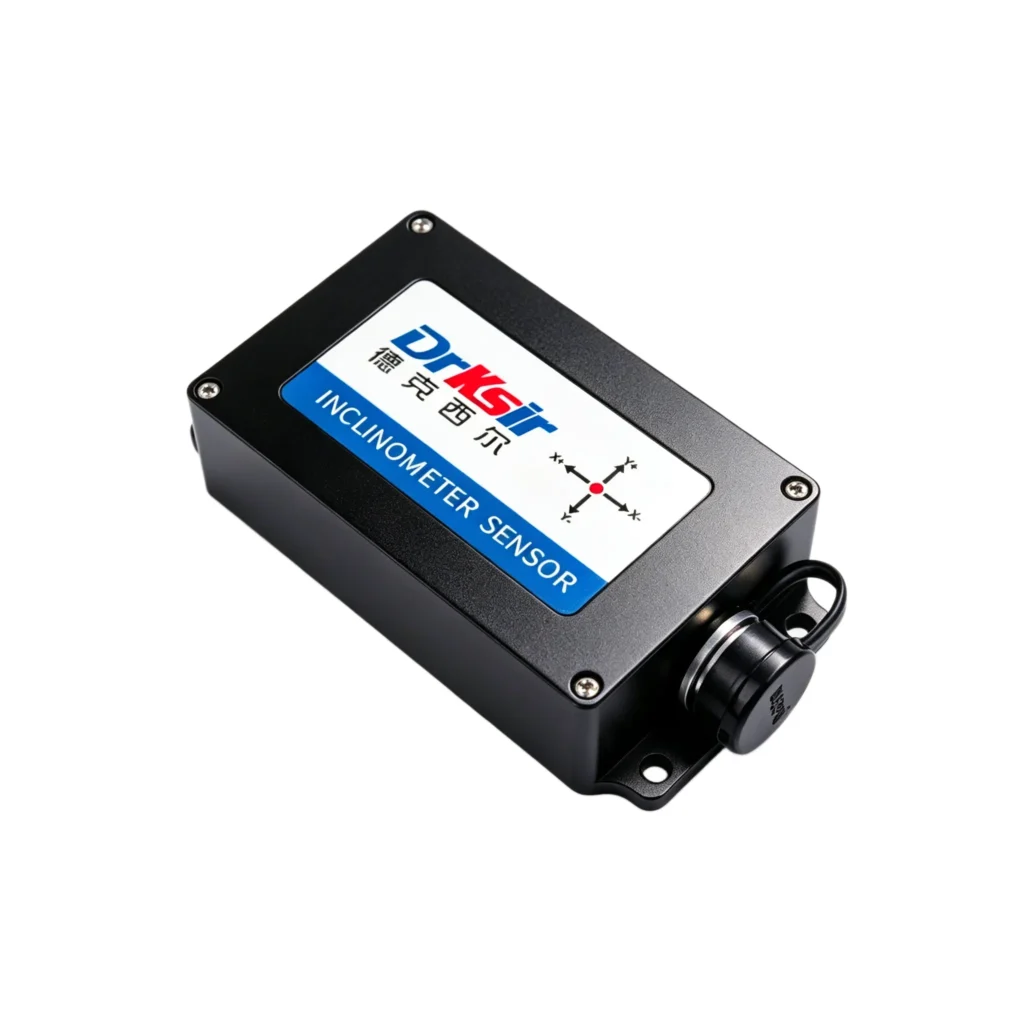

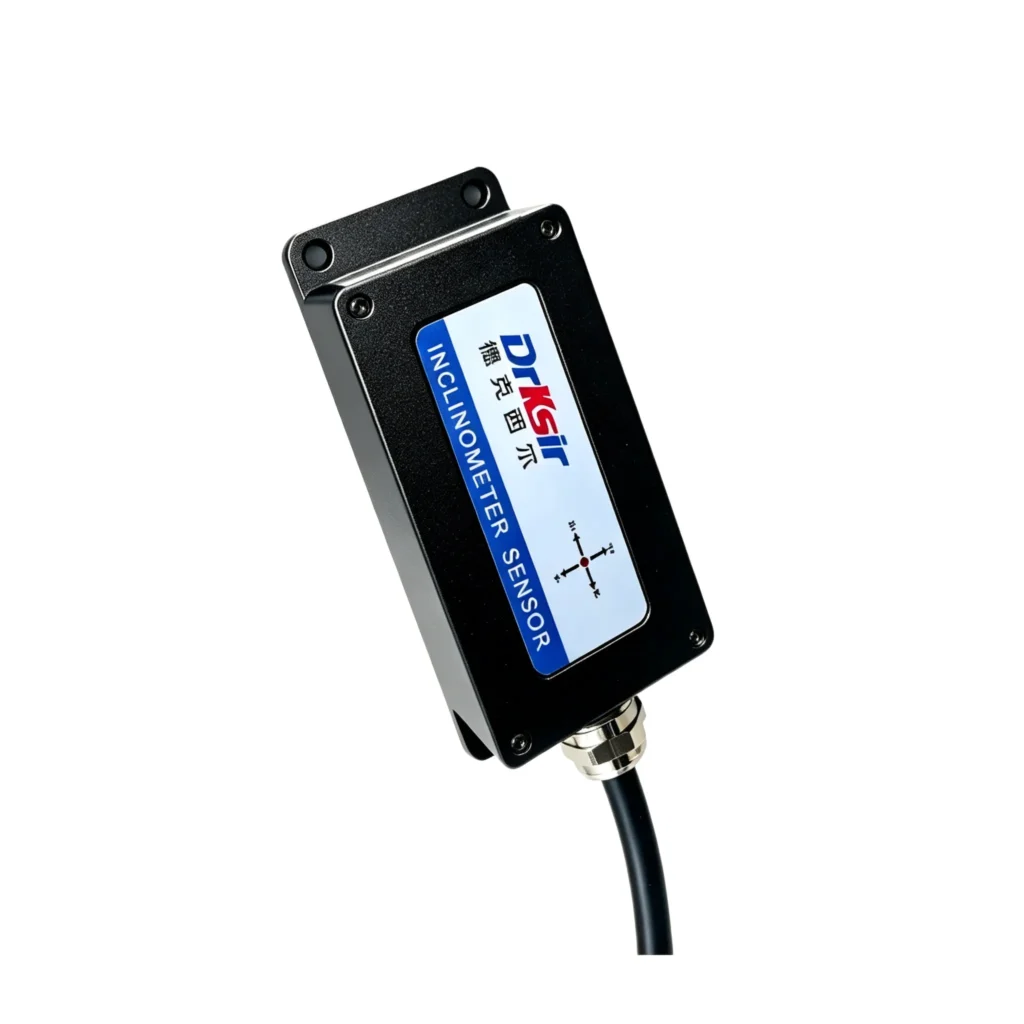

The DR-INC-500-A is a 0.001° ultra-high accuracy 4-20mA inclinometer built for structural monitoring systems that already use PLC analog inputs or current-loop data loggers. Bridges, dams, and high-rise structures deform at the millidegree level under load and temperature — well below what standard industrial tilt sensors can resolve. This dual-axis sensor outputs two independent 4-20mA current loops proportional to X-axis and Y-axis tilt, with millidegree-class accuracy across a selectable ±5° / ±10° / ±20° / ±30° measuring range. The 4-20mA signal travels cleanly across hundreds of meters in electrically noisy environments, making this variant a strong fit for retrofit projects and brownfield industrial sites where protocol converters are undesirable. Default model ships calibrated to ±10°; alternate ranges are configured at the factory on request.

Key Specifications

Where This Sensor Is Used

1. Bridge deflection monitoring — current-loop output integrates directly with most SCADA analog input modules (4-20mA is the de facto standard in civil engineering instrumentation).
2. Dam and reservoir safety — 4-20mA is preferred in dam monitoring because it travels cleanly across the hundreds of meters between sensor and control room, with no protocol overhead.
3. High-speed rail pier monitoring — direct connection to existing PLC analog cards without protocol conversion hardware.
4. Building settlement — brownfield building retrofits where legacy data acquisition systems only accept 4-20mA inputs.
5. Tunnel convergence — long cable runs from the tunnel interior to the surface control room, where 4-20mA outperforms digital protocols over 1 km+ distances.

Why Choose Drksir

1. 15+ years designing and manufacturing tilt sensors for industrial and infrastructure monitoring
2. 3,000+ projects delivered across civil engineering, renewable energy, and transportation
3. 0.001° absolute accuracy at the ±5°/±10° range — among the highest-resolution industrial inclinometers in production
4. 4-20mA output integrates with virtually any analog input module — no protocol converter required
5. IP67/IP68 protection options for harsh environment installation
6. Average service life ≥55,000 hours
7. 24-month warranty and lifetime application engineering support

How It Compares to Alternatives

1. Versus the RS485 version of the same sensor — identical accuracy, mechanics, and dimensions; the 4-20mA output requires no protocol converter and integrates with virtually any analog input module
2. Versus lower-accuracy current-loop sensors (0.1°-0.5°) — 50-100× better resolution, suitable for millidegree structural monitoring rather than just machine leveling
3. Versus voltage-output (0-10V) tilt sensors — immune to voltage drop over long cables; ground loop isolation inherent to current loop
4. Versus wireless tilt sensors — lower unit cost, no battery replacement, no radio path concerns inside steel-reinforced structures

Installation & Wiring

Mount on a flat, rigid surface (steel bracket or concrete anchor recommended). For highest accuracy, align the sensor’s X-axis to the primary direction of expected tilt.

The 4-20mA version uses the same multi-core shielded cable as the RS485 version, but with a different wire-to-function mapping for current-loop output:

Two independent 4-20mA current loops are output on the white and brown wires, one per axis. Each loop draws 4 mA at the negative full-scale tilt and 20 mA at the positive full-scale tilt, with 12 mA at zero tilt. Polarity is software-reversible via the configuration utility on the green/yellow pair.

For installations near VFDs, motor starters, or welding equipment, keep the loop cable at least 200 mm from power cables and cross them at 90° if they must intersect. Maximum recommended cable length depends on loop supply voltage and load resistance — refer to the datasheet for the loop resistance budget at a given supply voltage.

Integration & Programming

The 4-20mA output requires no protocol converter or configuration software in normal operation. Connect the white and brown wires to any 4-20mA analog input module, scale the reading according to the PLC’s input range, and the tilt value is immediately available. Typical scaling:

For a ±10° sensor at default calibration: 4 mA = -10°, 12 mA = 0°, 20 mA = +10°. The polarity sign convention can be software-reversed via the configuration utility on the reserved green/yellow pair.

Most PLC analog input modules (Siemens S7-1200 AI, Allen-Bradley 1734-IE2S, Schneider TM3AI4, etc.) accept 4-20mA directly with no additional hardware.

If zero-tilt drift accumulation over years of field service becomes larger than your application tolerance, the same configuration utility running on the RS485 pair can recalibrate the zero point without removing the sensor from the installation.

OEM/ODM & Customization

Standard units ship from stock within 5 business days. Custom measuring ranges (±5° / ±20° / ±30° alternate to default ±10°), cable lengths, connector types, and protection-grade options (IP67 vs IP68) are available for OEM/ODM orders starting at 50 units. Typical custom lead time is 15-25 business days.

FAQ

Q: Does the sensor require recalibration in the field?

A: No field recalibration is needed for the first 5 years under normal operating conditions.

Q: Can the sensor be used in submerged installations?

A: The IP68 protection option covers continuous immersion at 1 m for 30 days. For deeper or longer-term submersion, contact our engineering team.

Q: When should I choose the 4-20mA version over the RS485 version?

A: Choose 4-20mA when the data acquisition system uses analog inputs, when cable runs exceed 500 m, or when the installation environment has high EMI from VFDs or motors. Choose RS485 when multiple sensors share a single bus, when sample rate above 10 Hz is required, or when bidirectional communication (configuration, diagnostics) is needed.

Q: Which measuring range should I select?

A: Select the smallest range that covers your expected tilt. The ±5° and ±10° options deliver 0.001° accuracy; ±20° delivers 0.002°; ±30° delivers 0.003°. For bridge and dam monitoring (small deflections), ±5° or ±10° is usually correct. For tower or building monitoring with larger expected movements, ±20° or ±30° may be appropriate. The default SKU ships with ±10°; other ranges are configured at the factory on request (no minimum order quantity for alternate ranges).
